Large Scale Industrial Ammonia Cracking Plant Nh3 Hydrogen Shielding Gas Anticorrosion

Float glass field hydrogen produced by ammonia cracker as shielding gas anticorrosion with CE certificates

BASIC DESCRIPTION

Ammonia gas from cylinders passed over a bed of nickel catalyst at 850℃ temperature and cracking take place in two different gas i.e. 75% Hydrogen and 25% Nitrogen.

2NH₃->N₂ + 3H₂ (IN PRESENCE OF NICKEL CATALYST AT 850℃)

Ammonia cracking is endothermic reaction and require heat from other source. The source is electrically heated/gas fired furnace (Rectangular Shape) and a retort made of heat resistance alloy is provided to hold the ammonia cracking catalyst.

Cracked ammonia from furnace is cooled to ambient temperature in a shell &Tube type heat exchanger and having dew point around (-) 30℃. Further product gas is passed through a molecular sieves filled Gas Purifier to achieve a dew point up to (-) 80℃

SALIENT FEATURES

• Centrifugally cast retort
• Furnace skin temperature is 20℃
• Dew Point up to (-) 80℃
• Heating Element is Ni-Cr (80-20%)
• Long service cycle, Negligible maintenance, High turn down ratio
• Heavy duty operations for years and years
• Fully automatic no need of operator

APPLICATION

• Heat Treatment Furnace for bright annealing
• Brazing Industry
• For Gas Purification System
• Stainless Steel Industry
• Power Sector

Major applications of Ammonia Cracker Unit

l On site Generation of cracked gas Ammonia

l For Nitrogen Generation Plants

l Pipe Manufacturing Industry

l Sintered Brazing Industry

l Galvanizing Plants

l Automobile Industry

l Heat Treatments

nh3 cracking

Industrial Ammonia Cracking Plant

Large Scale Ammonia Cracking Plant

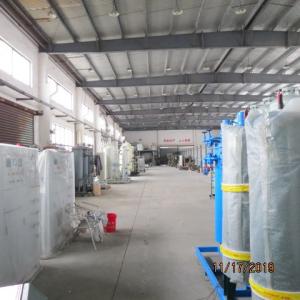

Large Scale Industrial Ammonia Cracking Plant Nh3 Hydrogen Shielding Gas Anticorrosion Images
